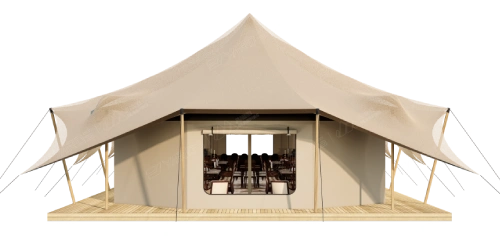

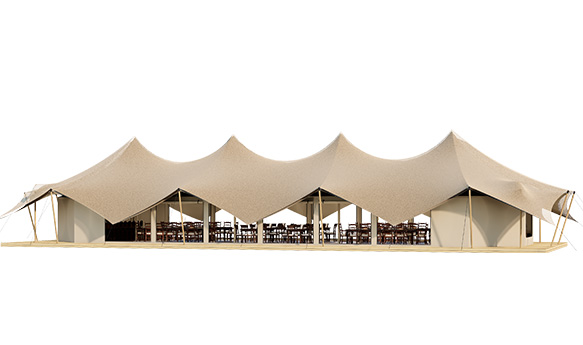

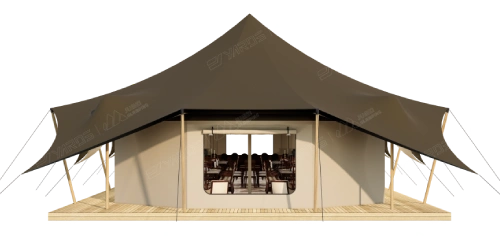

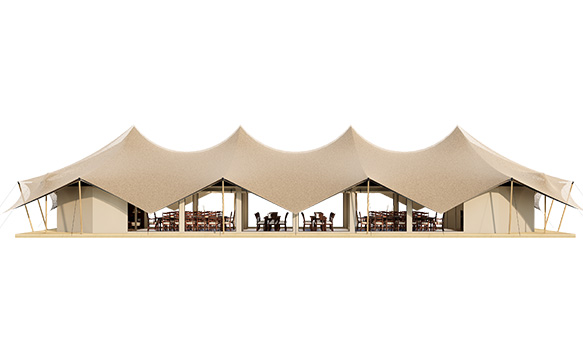

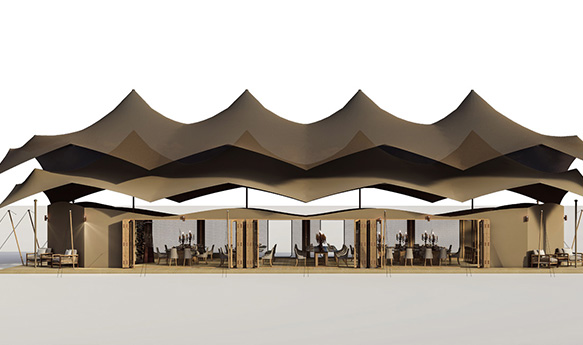

K190 - Large Multifunctional Service Hall
Multiple People
Total Surface301m2
Inside Area206.5m2
Veranda104.3m2
BedroomNo
BathroomNo
KitchenNo

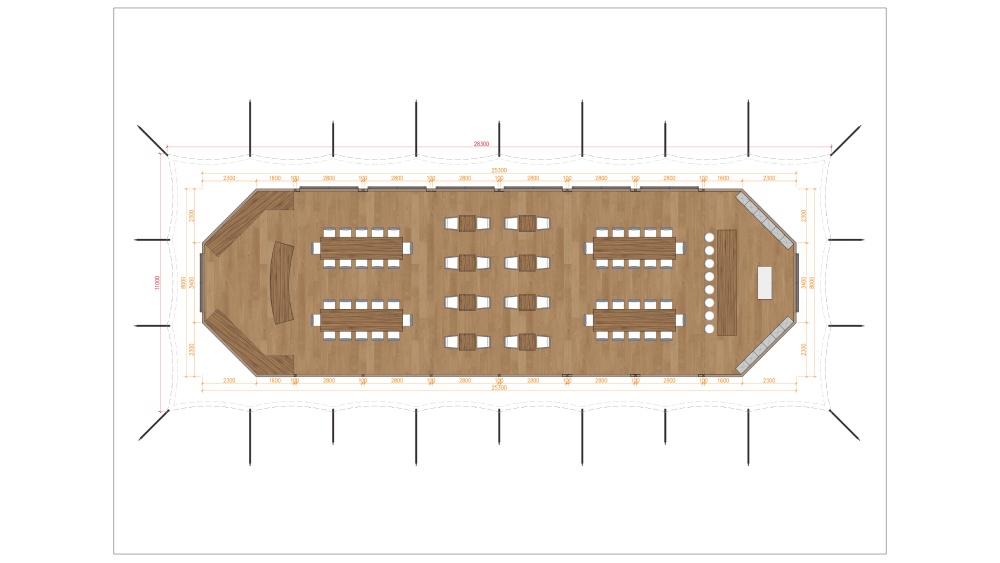

Dimensions

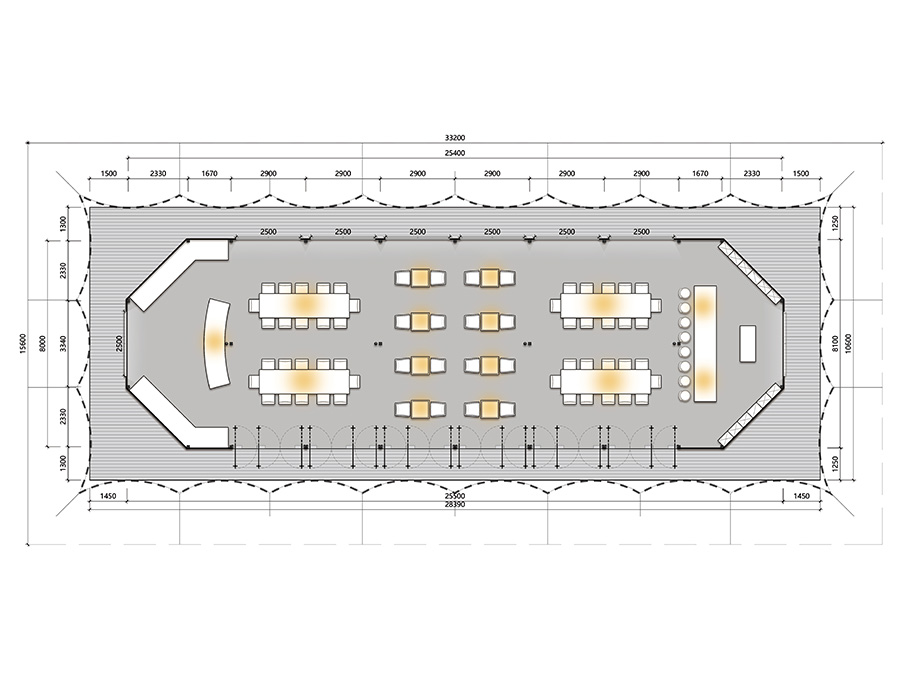

Projected Area
15.2 x 26.6= 404.32m2

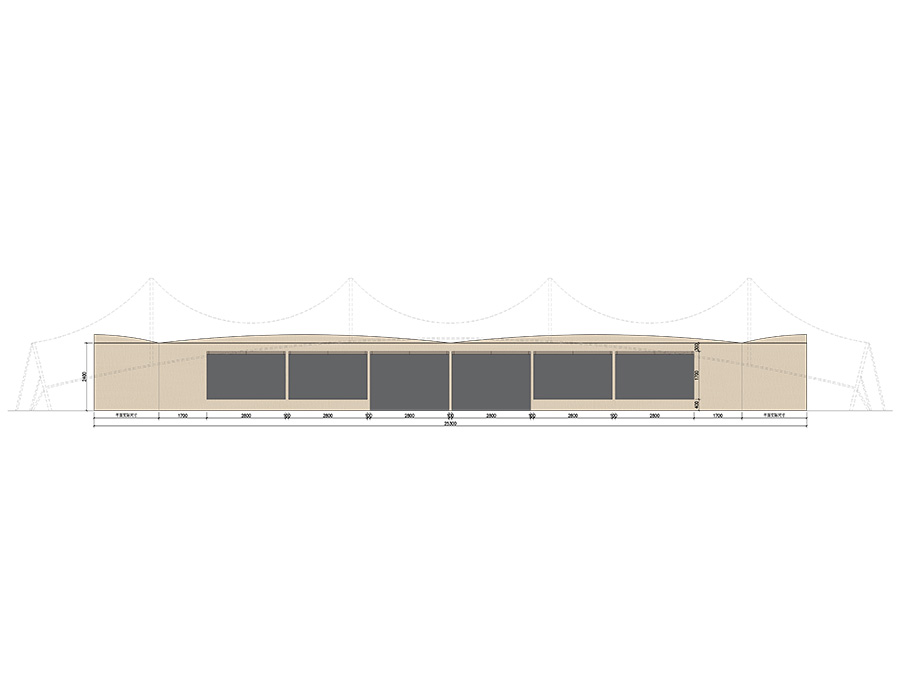

External Size
10.6m x 28.4m =301m2
Indoor Area
8.1m x 25.5m = 206.5m2
Veranda Area
104.3m²
External Height
5.8m
Indoor Height
4m
Features
Wind Resistance
Level 9
Roof Load
15KG/㎡
Applicable Temperature
-20℃~50℃
Lifespan
12 Years
Structure & Connectors
Poles
Scots Pine Wood
Pole Size
Dia. 70mm
Connectors
Anti-rust Steel Pipe
Connecting with
Self-tapping Screws
Roof(Outer Fabric)
Material
Canvas+Mesh Fabric, 550g/㎡
Waterproof
8000mm
Lightfastness
7(Blue Wool)
Color
Khaki, Custom
Features
Flame retardant, mould proof, UV resistance, tear resistance
Fixing
Aluminum Strips, Ropes
Inner Fabric
Material
Canvas, 450g/㎡
Waterproof
3000mm
Lightfastness
5(Blue Wool)
Color
Khaki, Custom
Features
Flame retardant, mould proof, UV resistance
Fixing
Pipe, Straps
Fixing with floor
Wood Strips, Waterproof Sealant
Zipper Door x 1
Size
2.8m x 2.5m
Material
Oxford Fabric
Flyscreen
Yes
Gas Strut Window x 1
Size
2m x 1.2m
Material
Oxford Fabric
Cover(Outside)
Clear PVC
Cover(Inside)
Oxford Fabric
Fixing
Velcro
Flyscreen
Yes
Optional add-ons and configurations
Platform(Deck)
Size
15.2m x 26.6m
Structure
Rust-resistant Steel
Tube Size
100x 80 x 4mm
Connection Method
Welding(or Screws and Nuts)
Flooring
Solid Wood Panels
Plank Dimensions
4000x100x25mm
Plank Dimensions(Indoor Flooring)
1210x183x12mm

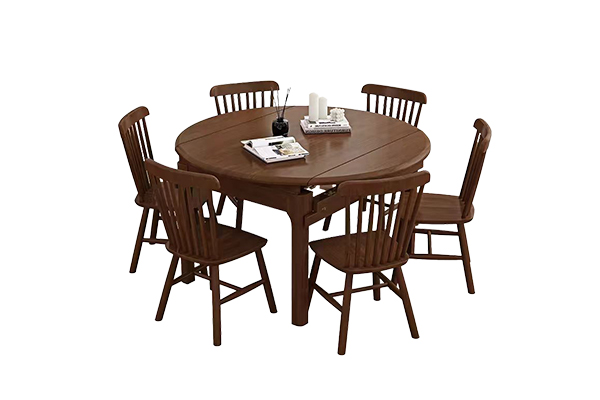

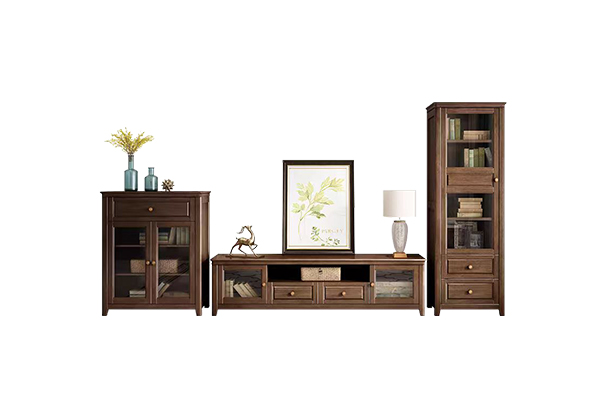

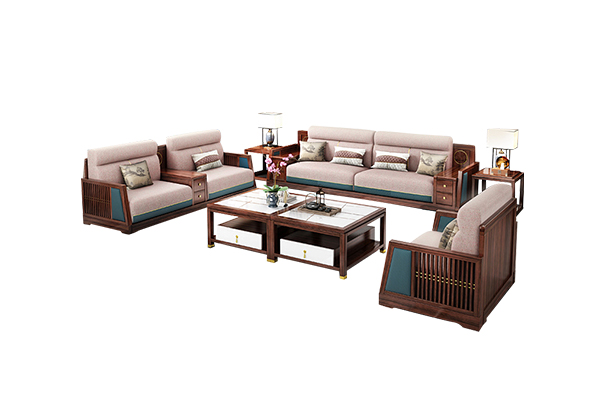

Furniture
Main Material
Solid Wood
Furniture Class
4-star Hotel
Bed and Mattress
150x 200cm *1
Nightstands
40x 40cm *2
Occasional Chair
65x 60cm *1
Round Table
50cm *1

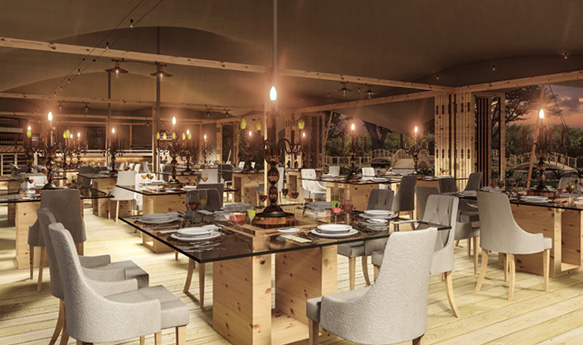

Application reality
- Adapt to various application scenarios
- Natural campsites; Featured homestays; Resort hotels
