A15 - Mini & Low-Cost Basic Safari Tent

Mini & Low-cost Triangle Safari Tent!

Get a FREE Quote!Get a FREE Quote!

1 Bedroom for 1-2 people

Total Surface
20m2
Inside Area
13m2
Veranda
2m2
Bedroom
1
Bathroom
No
Kitchen
No

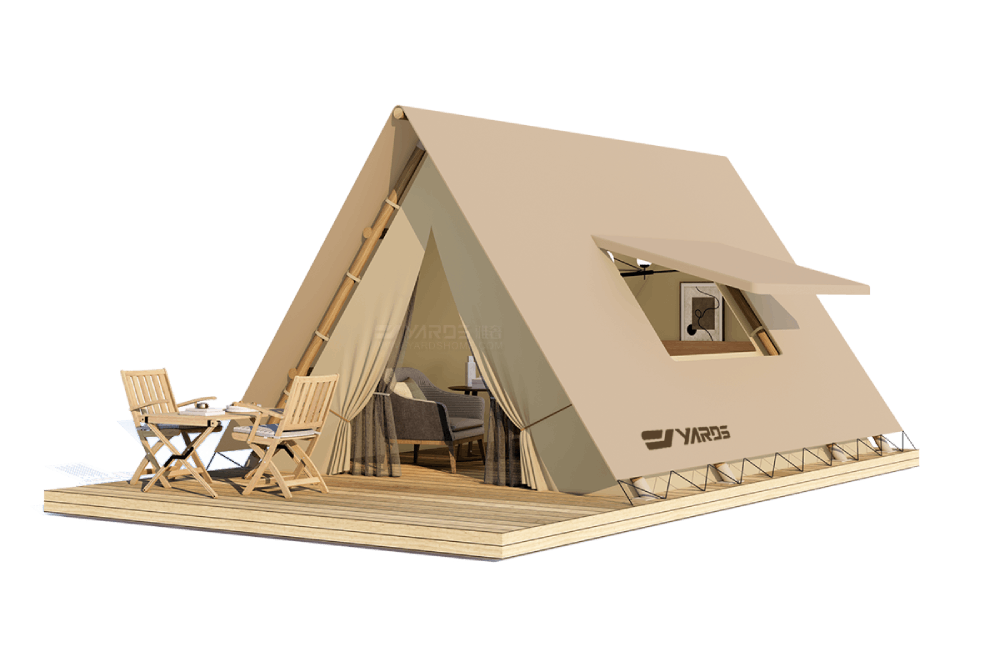

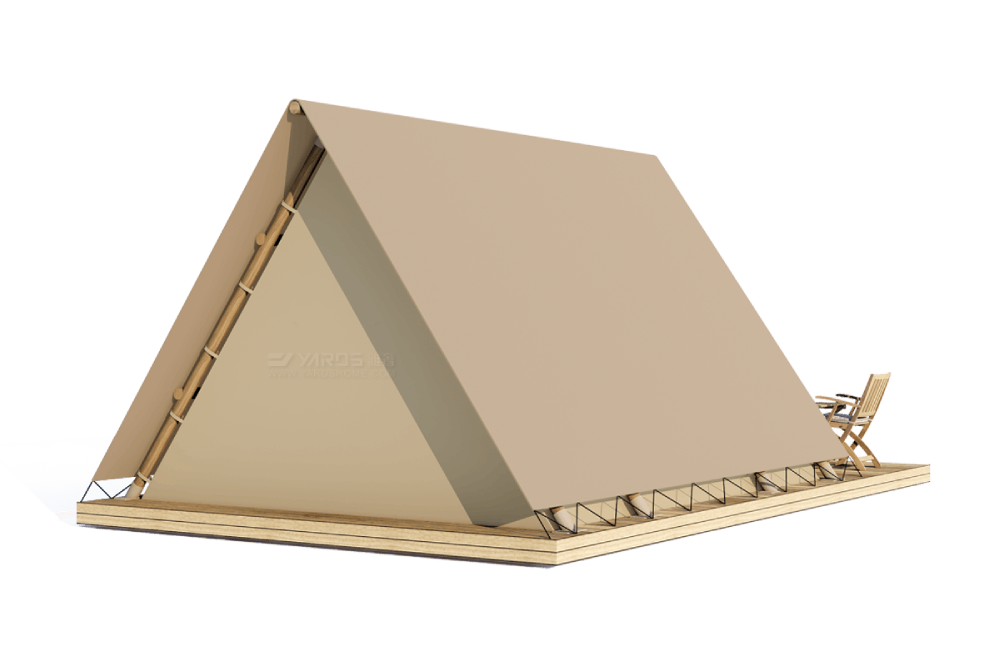

Mini Basic Safari Tent – A15  inspired by herders’ huts, Viking tents, and A-Frame tents. This triangle-shaped tent(A-Frame Safari Tent) has solid wood poles and gas strut windows on the side. Although the gas strut window’s width is up to 2m, it can be easily opened and closed, with good ventilation and vision after the window is opened.

The Basic Safari Tent Series is very popular after its launch, especially suitable for single or couple guests planning to take a short break at the glamping site. Guests are not demanding much luxury but looking for a place can sleep comfortably. Let’s enjoy nature and simplicity with this basic safari tent.

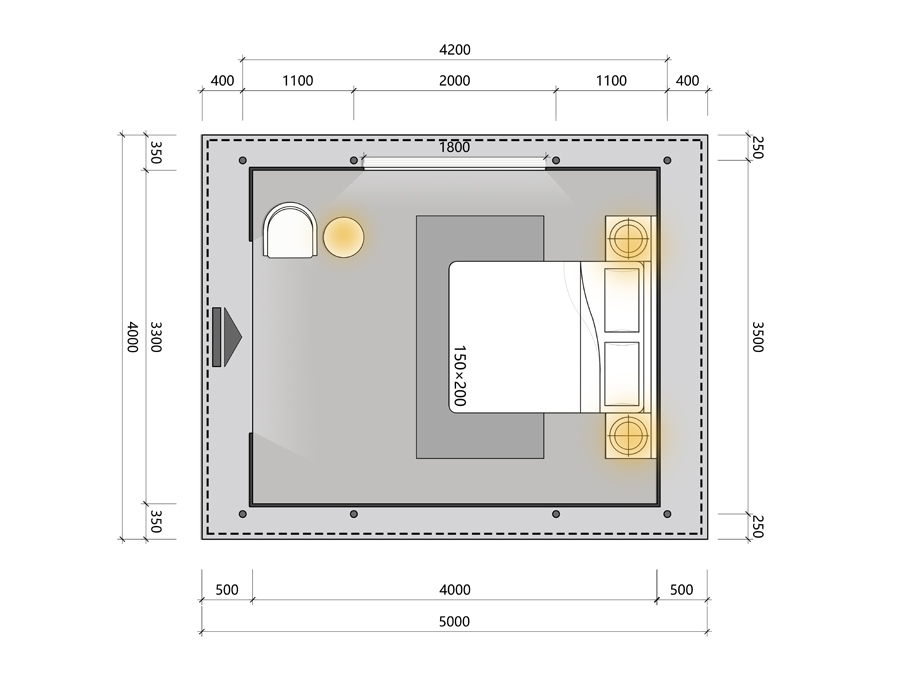

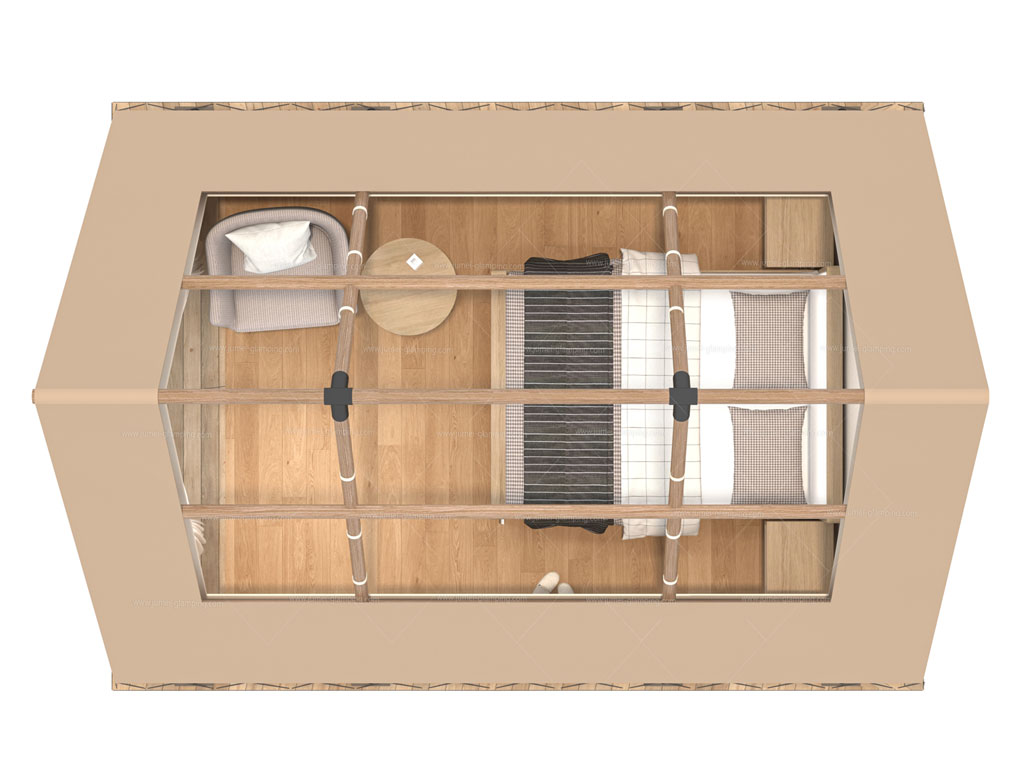

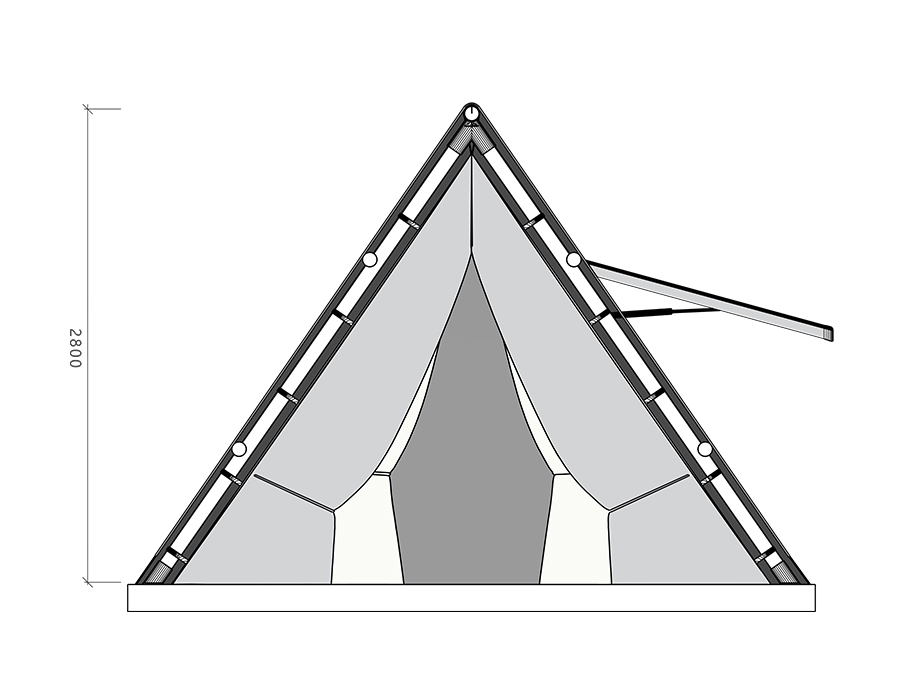

Floor Plan and Section View

*All dimensions are in cm, 1 cm= 0.3937 in, 2.54 cm = 1 in.

Specifications and Tech Data

Dimensions
Projected Area
5 x 4 = 20m2
External Size
3.5m x 4.2m = 15m2
Indoor Area
3.3m x 4m = 13M2
Veranda Area
2m²
External Height
2.8m
Indoor Height
2.5m
Features
Wind Resistance
Level 8
Roof Load
15KG/㎡
Applicable Temperature
-20℃~50℃
Lifespan
10 Years

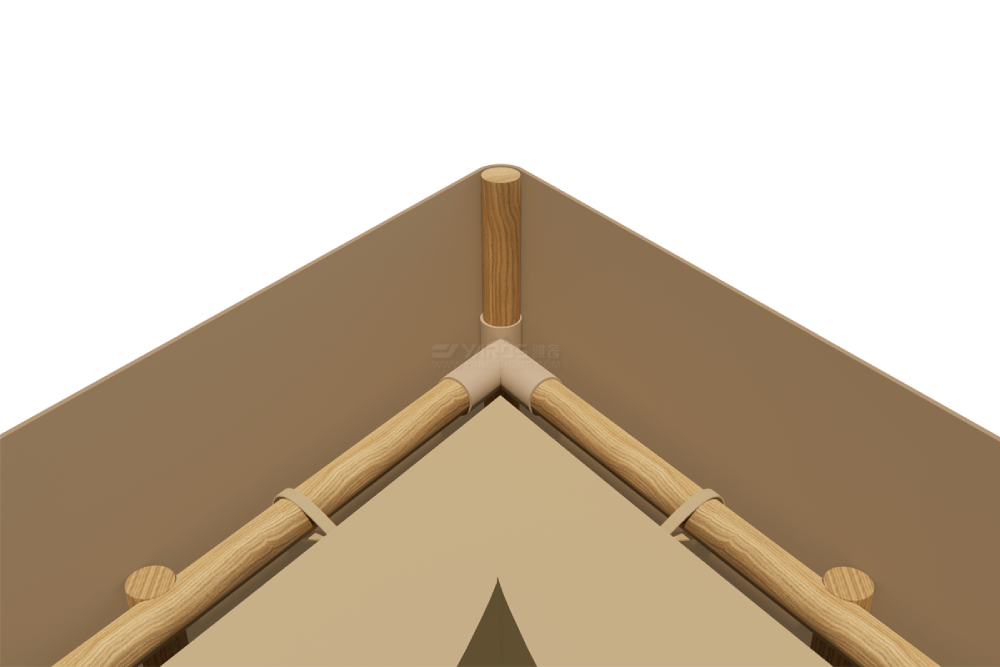

Structure & Connectors
Poles
Scots Pine Wood
Pole Size
Dia. 70mm
Connectors
Anti-rust Steel Pipe
Connecting with
Self-tapping Screws
Roof(Outer Fabric)
Material
PVC coated fabric, 850g/㎡
Waterproof
8000mm
Lightfastness
7(Blue Wool)
Color
Khaki, Custom
Features
Flame retardant, mould proof, UV resistance, tear resistance
Fixing
Aluminum Strips, Ropes
Inner Fabric
Material
High-performance oxford fabric, 420g/㎡
Waterproof
3000mm
Lightfastness
5(Blue Wool)
Color
Khaki, Custom
Features
Flame retardant, mould proof, UV resistance
Fixing
Pipe, Straps
Fixing with floor
Wood Strips, Waterproof Sealant
Zipper Door x 1
Size
2.8m x 2.5m
Material
Oxford Fabric
Flyscreen
Yes
Gas Strut Window x 1
Size
2m x 1.2m
Material
Oxford Fabric
Cover(Outside)
Clear PVC
Cover(Inside)
Oxford Fabric
Fixing
Velcro
Flyscreen
Yes

可选附加组件和配置

Platform(Deck)
Size
4m x 5m
Structure
Rust-resistant Steel
Tube Size
100x 80 x 4mm
Connection Method
Welding(or Screws and Nuts)
Flooring
Solid Wood Panels
Plank Dimensions
4000x100x25mm
Plank Dimensions(Indoor Flooring)
1210x183x12mm
Furniture
Main Material
Solid Wood
Furniture Class
4-star Hotel
Bed and Mattress
150x 200cm *1
Nightstands
40x 40cm *2
Occasional Chair
65x 60cm *1
Round Table
50cm *1

Applications

  • The resort guest room, glamping site accommodation.
  • Airbnb hosting.
