Safari Tents – New Classic Safari Tent
EC40 – New Classic Safari Tent with Glass Door & Front Walls
Guests
1-2 people
Total Surface
40m²
Inside Area
25m²
Veranda
13m²
Bedroom
1
Bathroom
Yes
Kitchen
No

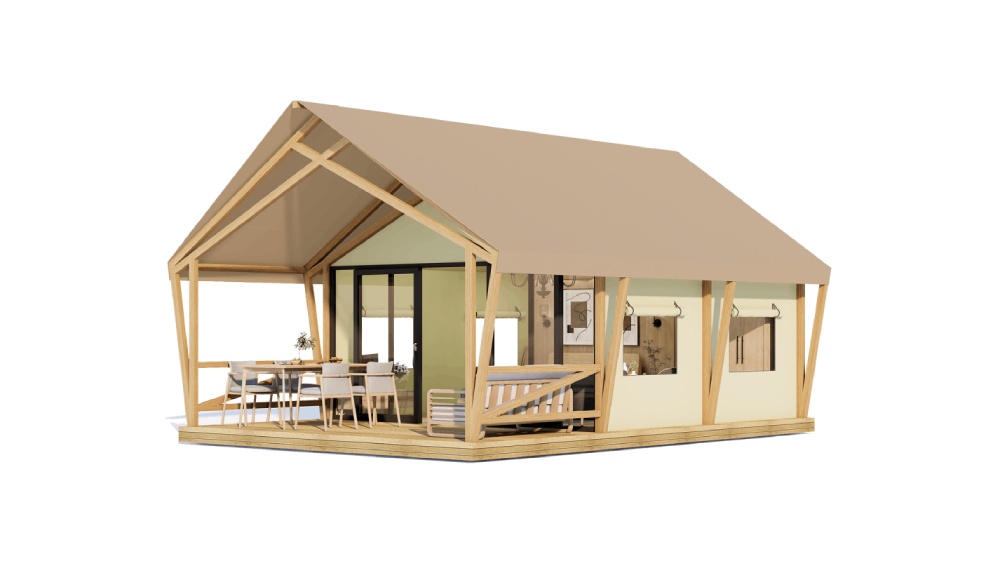

New Classic Safari Tent with Glass Door & Walls – EC40 is an upgraded version of the luxury safari tent with square poles, changing the ropes of both sides to solid wood poles while changing the front door and walls to glass, making the appearance cleaner, fresh and high end. It gives customers who have unique appearance requirements and pursue a sense of luxury one more choice, and make it suitable for more application scenarios such as various multi-functional halls, reception rooms, etc.
The ropes on both sides of the EC40 tent have been changed to solid wood poles, which are more durable than ropes, especially in bad weather conditions. Meanwhile, the front door and walls have been changed to glass, which can increase the natural light inside the tent, and the glass can also make the appearance cleaner, fresher and higher-end, and if you consider the privacy issue, it can be solved by using frosted glass or installing curtains. Compared to C45 product, C40 also adds a small side terrace designed to provide a casual outdoor small dining area for customers to better experience the fun of nature.
Specifications Data

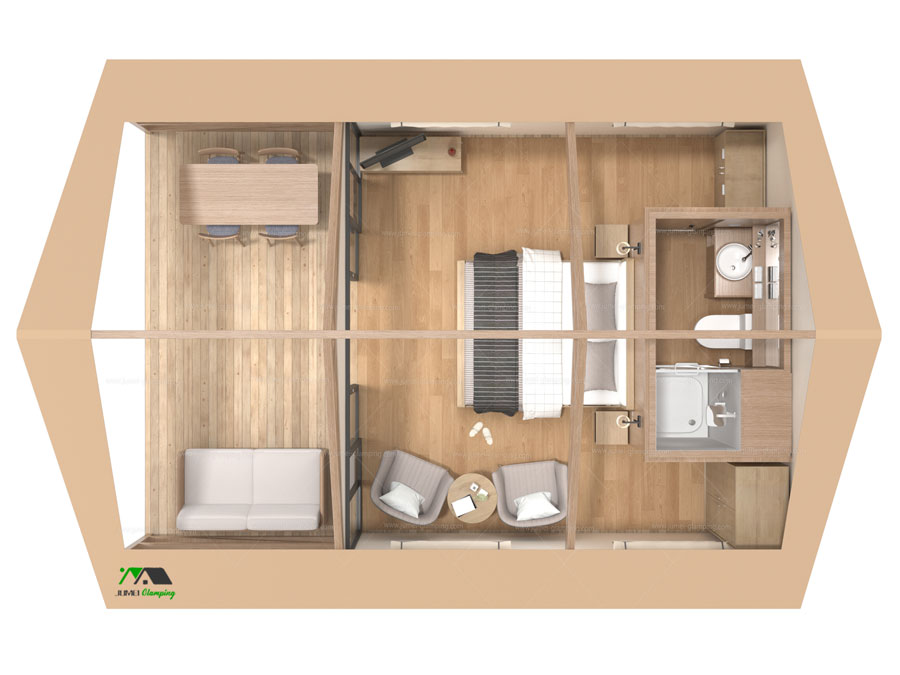

Dimensions
Projected Area | 51.4m² |
External Size | 5m x 8m = 40m2 |
Indoor Area | 4.8m x 5.3m = 25m² |
Veranda Area | 4.8m x 2.6m ≈ 13m² |

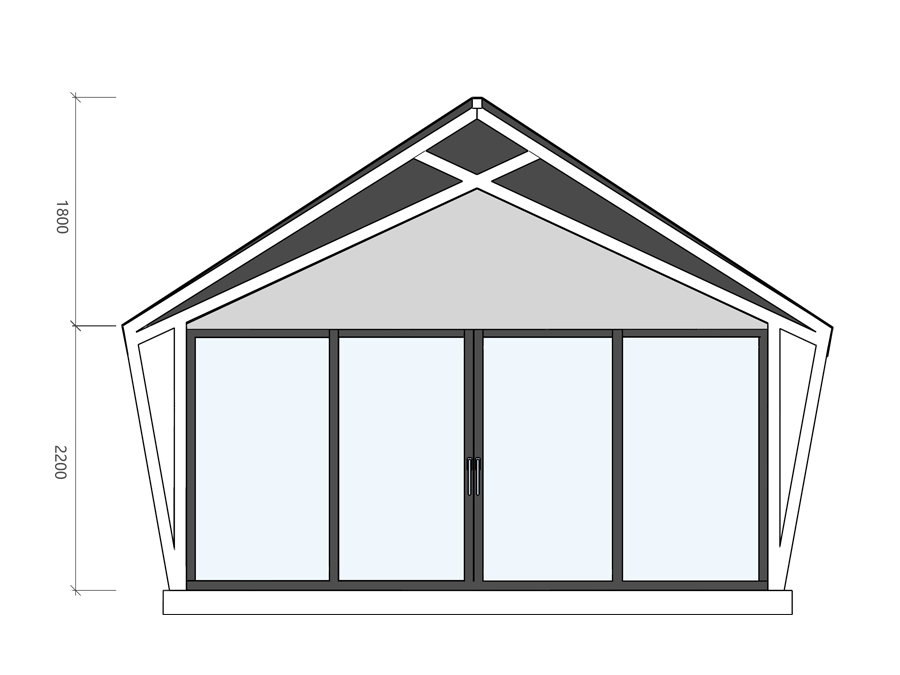

External Height | 4m / 2.2m(Top/Side) |
Indoor Height | 3.3m / 2.1m(Top/Side) |
Features
Wind Resistance | Level 10 |
Roof Load | 15kg/㎡ |
Suitable Temperature | 0°C~40°C |
Lifespan | 10 Years |

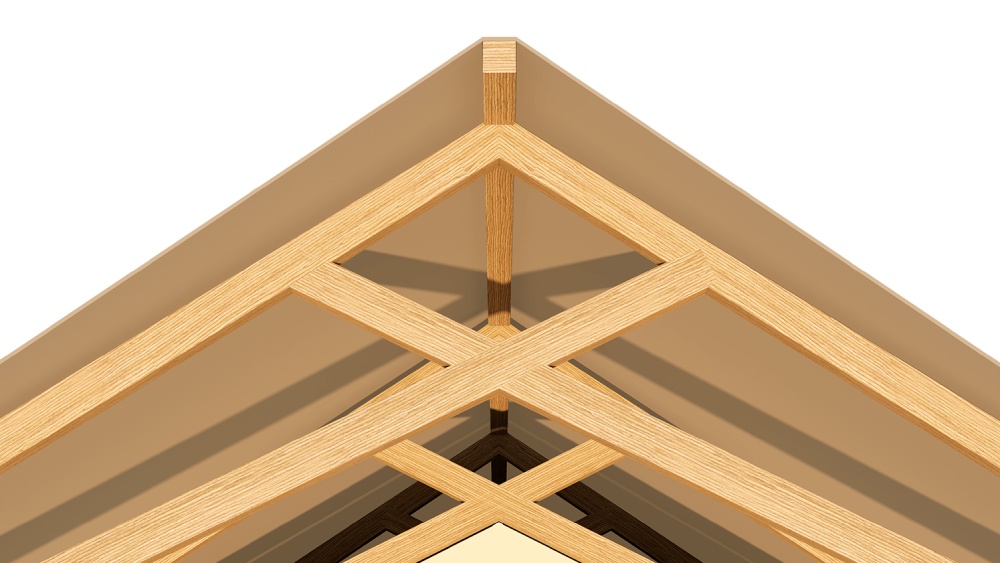

Structure & Connectors
Poles | Scots Pine Wood |
Pole Size | 100x80mm |
Connectors | Anti-rust Steel Pipe |
Connecting with | Self-tapping Screws |
Roof
Material | PVC coated fabric, 850g/㎡ |
Waterproof | 8000mm |
Lightfastness | 7(Blue Wool) |
Color | Khaki, Custom |
Features | Flame retardant, mould proof, UV resistance, tear resistance |
Fixing | Aluminum Strips, Ropes |
Material | PVC coated fabric, 850g/㎡ |
Waterproof | 8000mm |
Lightfastness | 7(Blue Wool) |
Color | Khaki, Custom |
Features | Flame retardant, mould proof, UV resistance, tear resistance |
Fixing | Aluminum Strips, Ropes |
Inner Fabric(Walls)
Material | canvas 420g/m² |
Waterproof | 3000mm |
Lightfastness | 5(Blue Wool) |
Color | Beige,Custom |
Features | Flame retardant, mould proof UV resistance |
Fixing | Pipe, Straps |
Fixing with floor | Wood Strips, Waterproof Sealant |
Zipper Door x 1
Size | 2.4m x 2.1m |
Material | Glass |
Zipper Window x 4
Size | 1.2m x 0.8m |
Material | Oxford Fabric |
Cover(Outside) | Clear PVC |
Cover(lnside) | Oxford Fabric |
Fixing | Velcro |
Flyscreen | Yes |
Optional add-ons
Platform(Deck)
Size | 5.2m x 8.2m |
Structure | Galvanized steel tube |
Tube Size | 100 x 80 x 4mm |
Connection Method | Welding(or Screws and Nuts) |
Flooring | Pinewood Planks |
Plank Dimensions | 4000x100x25mm |
Plank Dimensions(Indoor Flooring) | 1210x183x12mm |

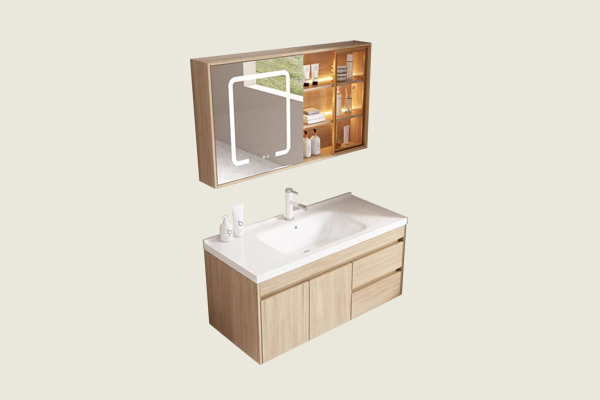

Bathroom
Dimensions | 260cm(L)x150cm(W)x240cm(H) |
Wall Thickness | 70mm |
Configuration | Toilet,Shower Head, Sink, Mirror |
Door | Solid wood |
Shower Room | 0.9m x 0.9m |
Flooring | Sintered Stone |
Shower partition | Tempered glass |
Wall Finish | 4mm Aluminum Panel(lnside bathroom) |
Ceiling | 4mm aluminum panel(lnside bathroom) |
Wall Finish | 15mm Wood Board |
Ambient light | Above the wall |

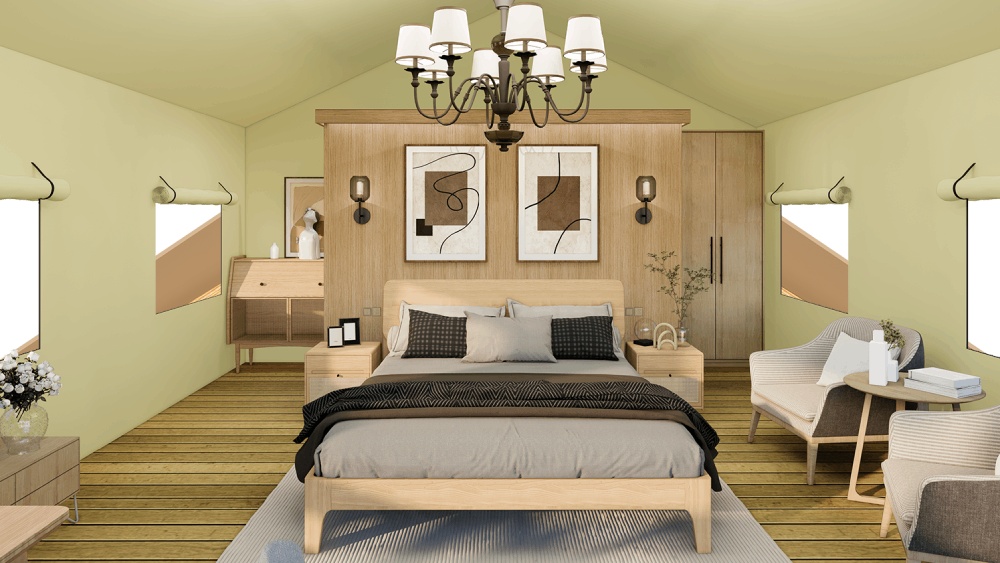

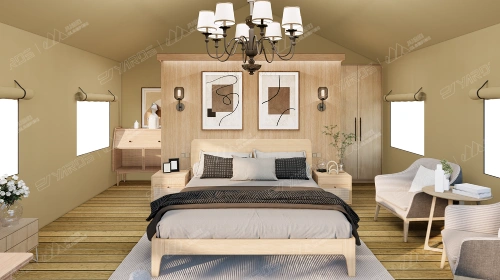

Furniture
Main Material | Solid Wood |
Furniture Class | 4-star Hotel |
Bed and Mattress | 180 x 200cm *1 |
Nightstands | 4 0x 40cm *2 |

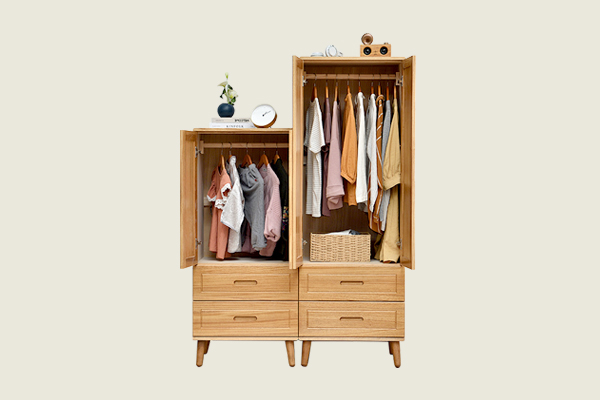

Wardrobe | 80 x 50 x 200cm *1 |
Cupboard | 80 x 50 x 150cm *1 |
TV Stand | 120 x 40cm *1 |
Occasional Chair | 65 x 60cm *1 |
Round Table | 50cm *1 |
Dining Table | 140 x 70cm *1 |
Dining Chairs | 65 x 50cm *4 |
Sofa | 160x 85cm *1 |
Air Conditioner | Wall-Hanging, 2p |
