C45 - Glass Doors and Windows with High Quality Tent

Glass Doors and Windows with High Quality Tent.

Get a FREE Quote!Get a FREE Quote!

1 Bedroom for 1-2 people

Total Surface
53.9m2
Inside Area
32m2
Veranda
18.8m2
Bedroom
1
Bathroom
Yes
Kitchen
No

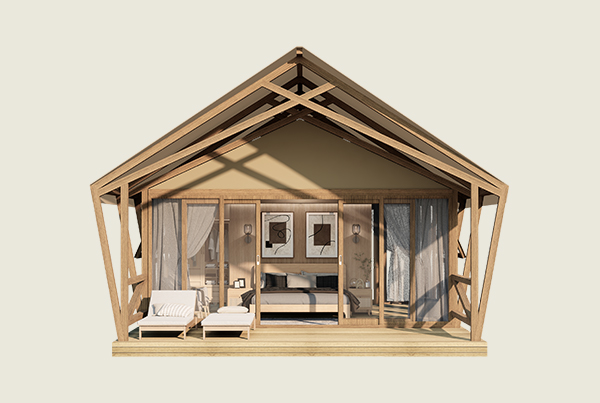

Glass Doors and Windows with High Quality Tent – C45 is an upgraded version of the luxury safari tent with square poles, changing the ropes of both sides to solid wood poles while changing the front door and walls to glass, making the appearance cleaner, fresh and high end. It gives customers who have unique appearance requirements and pursue a sense of luxury one more choice, and make it suitable for more application scenarios such as various multi-functional halls, reception rooms, etc.

The main body of the C45 tent measures 4.9m*6.5m, with a reasonable layout that maximizes space utilization for a variety of uses, such as accommodation, office or leisure, and meets customers’ needs for comfortable, safe, economical and adaptable outdoor living solutions. The glass window design not only makes the tent building more high-class and luxurious, but also provides customers with more safety and security due to the robustness of the glass material, as well as reduces maintenance costs during daily operation.

Product Display

Specifications and Tech Data

Dimensions
Projected Area
51.4M2
External Size
5m x 8m = 40m2
Indoor Area
4.8m x 5.3m = 25M2
Veranda Area
4.8m x 2.6m ≈ 13m²
External Height
4m / 2.2m(Top/Side)
Indoor Height
3.7m / 2.1m(Top/Side)
Features
Wind Resistance
Level 10
Roof Load
15KG/㎡
Applicable Temperature
-20℃~50℃
Lifespan
10 Years
Structure & Connectors
Poles
Solid Pinewood
Pole Size
100x80mm
Connectors
Anti-rust Steel Pipe
Connecting with
Self-tapping Screws
Roof
Material
PVC coated fabric, 850g/㎡
Waterproof
8000mm
Lightfastness
7(Blue Wool)
Color
Khaki, Custom
Features
Flame retardant, mould proof, UV resistance, tear resistance
Fixing
Aluminum Strips, Ropes
Inner Fabric(Walls)
Material
High-performance oxford fabric, 420g/㎡ + Double Glazed Glass
Waterproof
3000mm
Lightfastness
5(Blue Wool)
Color
Beige, Custom
Features
Flame retardant, mould proof, UV resistance
Fixing
Pipe, Straps
Fixing with floor
Wood Strips, Waterproof Sealant
Glass Sliding Door x 1
Size
2.4m x 2.1m
Material
Glass
Zipper Window x 4
Size
1.2m x 0.8m
Material
Oxford Fabric
Cover(Outside)
Clear PVC
Cover(Inside)
Oxford Fabric
Fixing
Velcro
Flyscreen
Yes

Floor Plan and Section View

*Above dimensions are in cm, 1 cm= 0.3937 in, 2.54 cm = 1 in.

Platform(Deck)
Size
5.2m x 8.2m
Structure
Galvanized steel tube
Tube Size
100x 80 x 4mm
Connection Method
Welding(or Screws and Nuts)
Flooring
Pinewood Planks
Plank Dimensions
4000x100x25mm
Plank Dimensions(Indoor Flooring)
1210x183x12mm
Bathroom
Dimensions
260cm(L)x150cm(W)x240cm(H)
Wall Thickness
70mm
Configuration
Toilet, Shower Head, Sink, Mirror
Door
Solid wood
Shower Room
0.9m x 0.9m
Flooring
Sintered Stone
Shower partition
Tempered glass
Wall Finish
4mm Aluminum Panel(Inside bathroom)
Ceiling
4mm aluminum panel(Inside bathroom)
Wall Finish
15mm Wood Board
Ambient light
Above the wall
Furniture
Main Material
Solid Wood
Furniture Class
4-star Hotel
Bed and Mattress
180x 200cm *1
Nightstands
40x 40cm *2
Wardrobe
80x 50x 200cm *1
Cupboard
80x 50x 150cm *1
TV Stand
120x 40cm *1
Occasional Chair
65x 60cm *1
Round Table
50cm *1
Dining Table
140x 70cm *1
Dining Chairs
65x 50cm *4
Sofa
160x 85cm *1

Furniture samples (optional)

New Classic Safari Tent(C40) Sample Video
