E40 - Sunroom Safari Tent with Canvas Walls

Sunroom Safari Tent with Canvas Walls

Get a FREE Quote!Get a FREE Quote!

1 Bedroom for 1-2 people

Total Surface
48.4m2
Inside Area
25m2
Veranda
13m2
Bedroom
1
Bathroom
Yes
Kitchen
No

Sunroom Safari Tent with Canvas Walls – E40 combines the features of Luxury Safari Tent(B Series) and New Classic Safari Tent(C series) square poles. We have designed two products, E40 and EX45, of which E40 is a canvas as the side wall and keep the ropes, while EX45 uses Glass walls and doors, without ropes, which are more fitting for the name sunroom.

This E-Series safari tent also has a large front balcony, PVC fabric top roof, and premium canvas walls, and you can choose a glass sidewall version of this tent to make it a sunroom. The square solid wood poles provide a spacious, flexible room and a special look, specially selected PVC and canvas fabric with flame retardant, 100% waterproof, UV resistance, tear resistance, and self-cleaning ability.

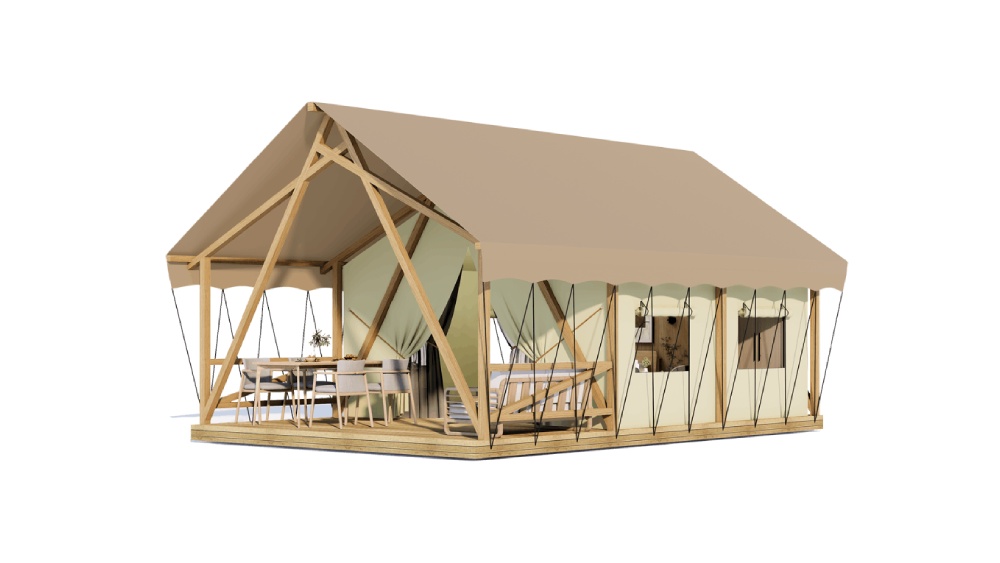

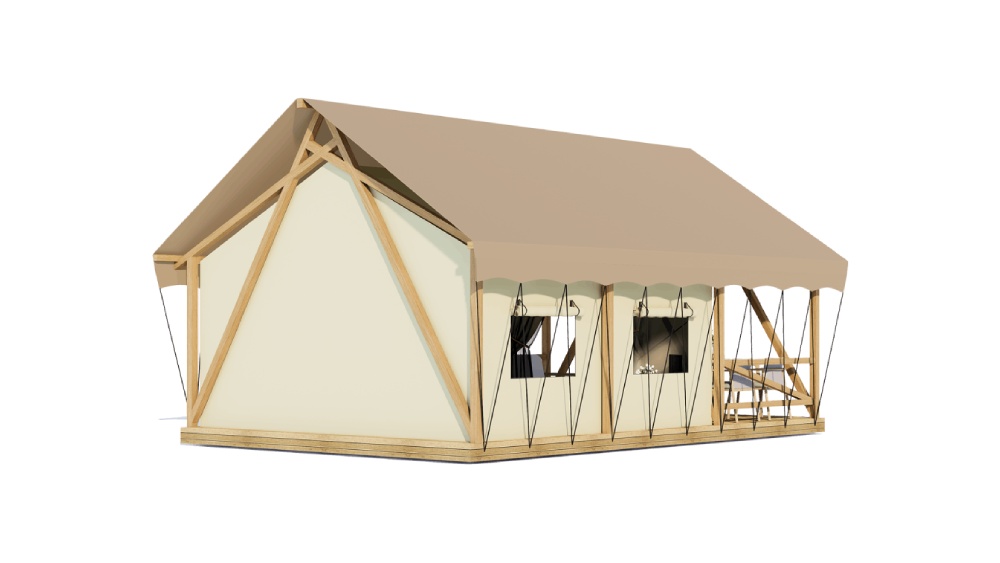

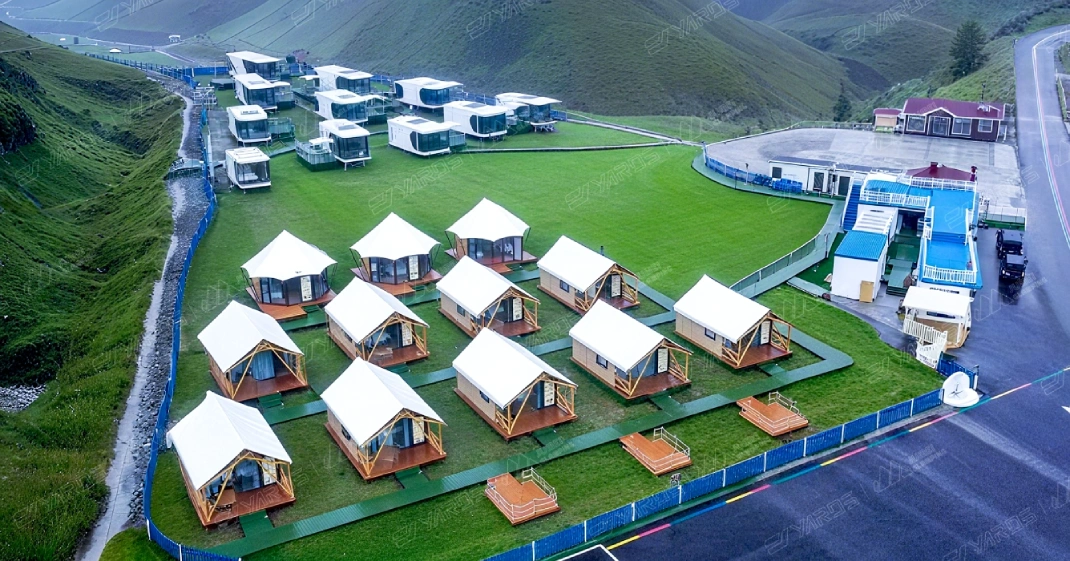

Product Display

Specifications and Tech Data

Dimensions
Projected Area
50.16M2
External Size
5m x 8m = 40m2
Indoor Area
4.8m x 5.2m = 25M2
Veranda Area
4.8m x 2.6m ≈ 13m²
External Height
4m / 2.2m(Top/Side)
Indoor Height
3.7m / 2.1m(Top/Side)
Features
Wind Resistance
Level 9
Roof Load
15KG/㎡
Applicable Temperature
-20℃~50℃
Lifespan
10 Years

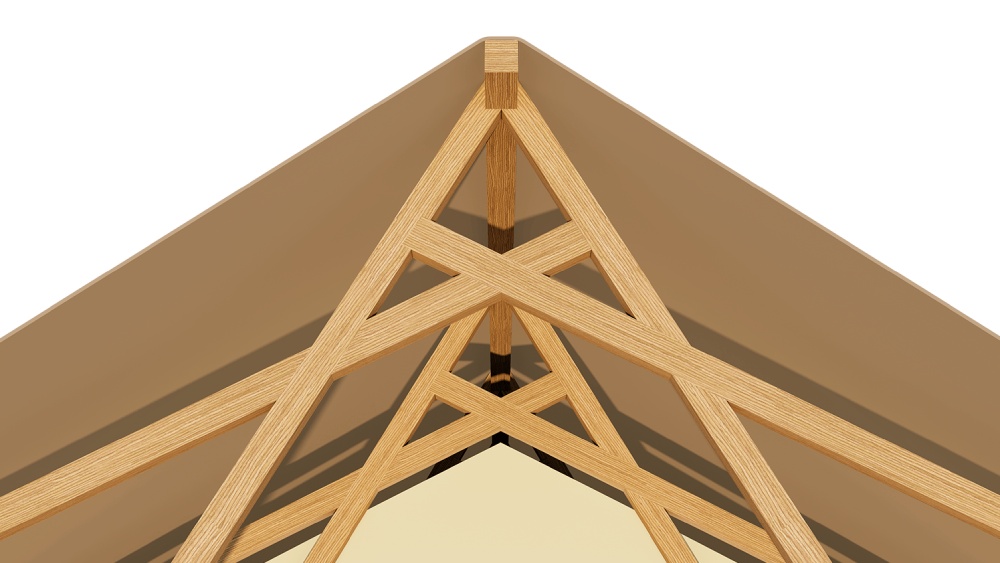

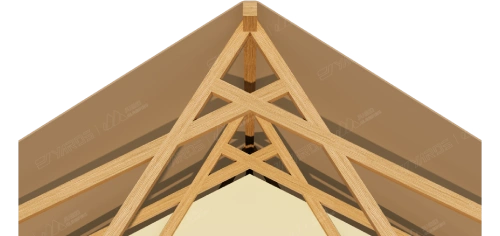

Structure & Connectors
Poles
Solid Pinewood
Pole Size
100x80mm
Connectors
Anti-rust Steel Pipe
Connecting with
Self-tapping Screws
Roof
Material
PVC coated fabric, 850g/㎡
Waterproof
8000mm
Lightfastness
7(Blue Wool)
Color
Khaki, Custom
Features
Flame retardant, mould proof, UV resistance, tear resistance
Fixing
Aluminum Strips, Ropes
Inner Fabric(Walls)
Material
High-performance oxford fabric, 420g/㎡
Waterproof
3000mm
Lightfastness
5(Blue Wool)
Color
Beige, Custom
Features
Flame retardant, mould proof, UV resistance
Fixing
Pipe, Straps
Fixing with floor
Wood Strips, Waterproof Sealant
Zipper Door x 1
Size
4.3m x 2.5m
Material
Oxford Fabric
Flyscreen
Yes
Zipper Window x 4
Size
1.2m x 0.8m
Material
Oxford Fabric
Cover(Outside)
Clear PVC
Cover(Inside)
Oxford Fabric
Fixing
Velcro
Flyscreen
Yes

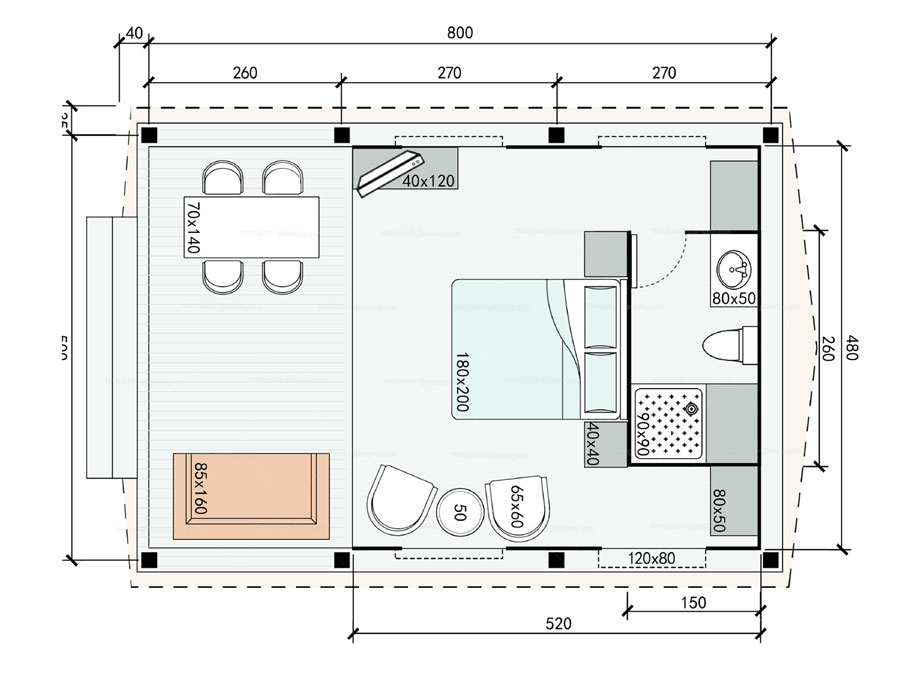

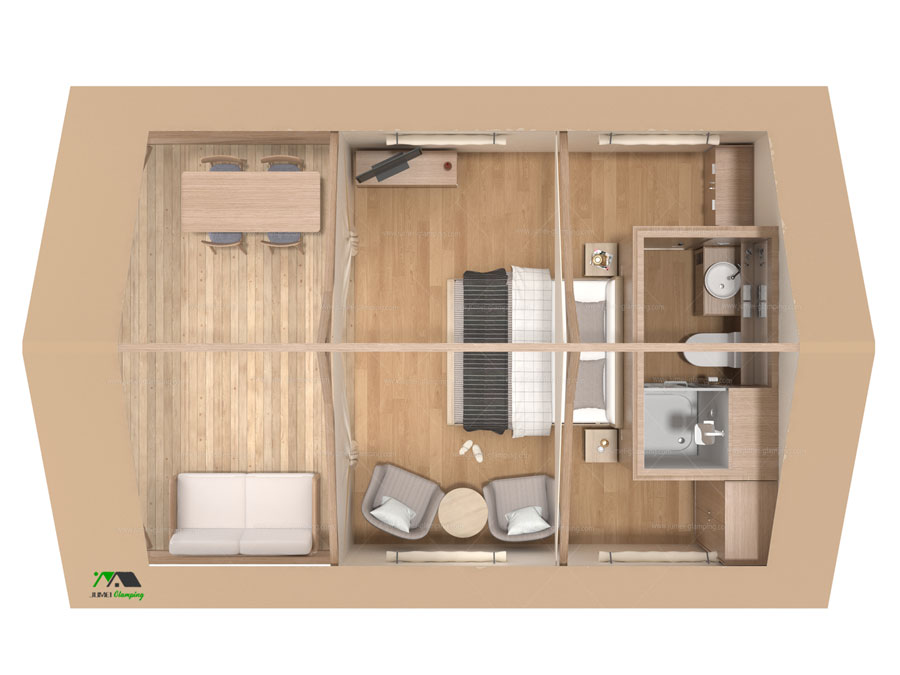

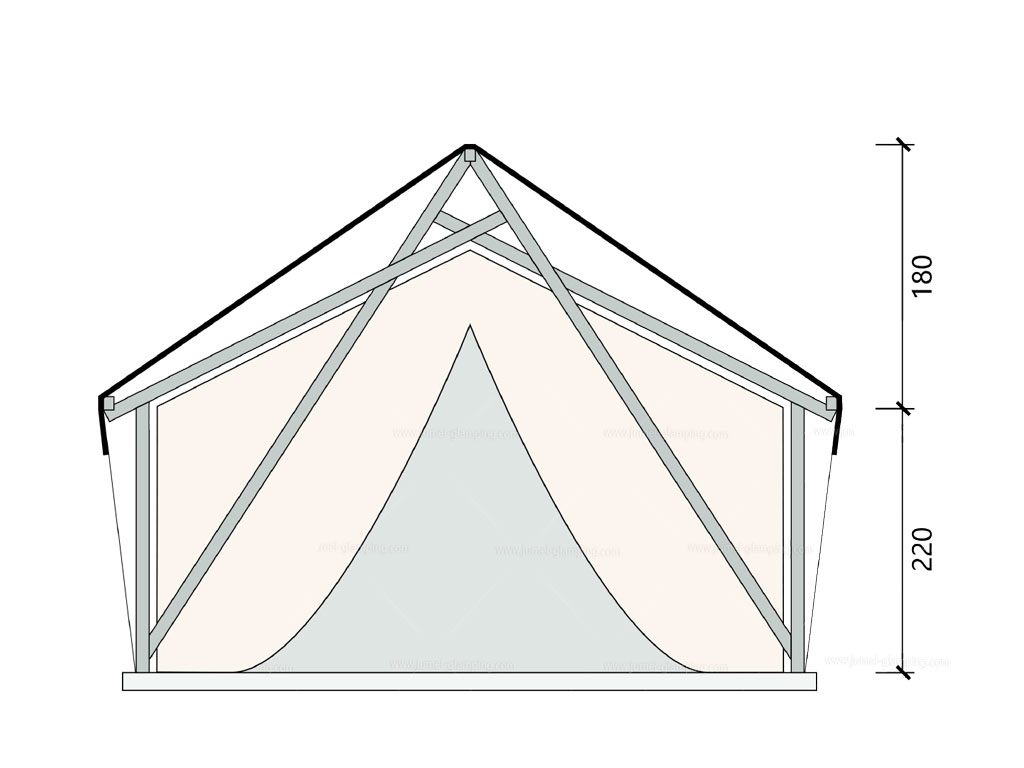

Floor Plan and Section View

*Above dimensions are in cm, 1 cm= 0.3937 in, 2.54 cm = 1 in.

Platform(Deck)
Size
5.2m x 8.2m
Structure
Galvanized steel tube
Tube Size
100x 80 x 4mm
Connection Method
Welding(or Screws and Nuts)
Flooring
Pinewood Planks
Plank Dimensions
4000x100x25mm
Plank Dimensions(Indoor Flooring)
1210x183x12mm
Bathroom
Dimensions
260cm(L)x150cm(W)x240cm(H)
Wall Thickness
70mm
Configuration
Toilet, Shower Head, Sink, Mirror
Door
Solid wood
Shower Room
0.9m x 0.9m
Flooring
Sintered Stone
Shower partition
Tempered glass
Wall Finish
4mm Aluminum Panel(Inside bathroom)
Ceiling
4mm aluminum panel(Inside bathroom)
Wall Finish
15mm Wood Board
Ambient light
Above the wall

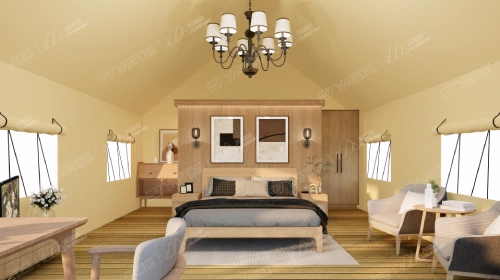

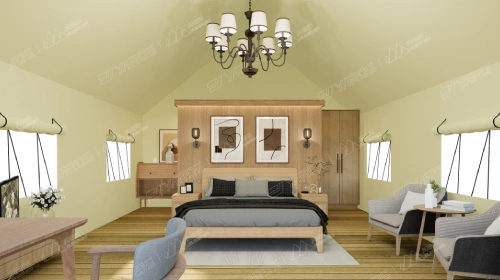

Furniture
Main Material
Solid Wood
Furniture Class
4-star Hotel
Bed and Mattress
180x 200cm *1
Nightstands
40x 40cm *2
TV Stand
120x 40cm *1
Occasional Chair
65x 60cm *1
Round Table
50cm *1
Dining Table
140x 70cm *1
Dining Chairs
65x 50cm *4
Sofa
160x 85cm *1
Air Conditioner
Wall-hanging, 2P
Refrigerator
50x50x53cm

Furniture samples (optional)

Sunroom Safari Tent(E40) Sample Video
